3UG4841-1CA40 | Siemens

Current relay, digital, COS-PHI and current monitoring. for IO -Link. 90-690 V, 2 Form C (NO/NC), 24 V (DC), 5 A, 3UG4841-1CA40

Order No.: 27H9028
EAN: 4011209895874
MPN:
3UG4841-1CA40
3UG48411CA40
3UG4841-1CA40 Siemens Monitoring Relays

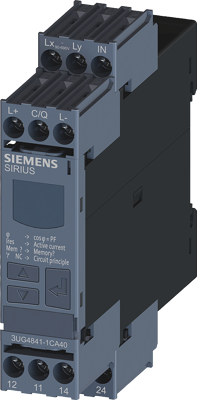

Image may differ
Unit Price (€ / pc.)
302.617 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
302.62 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
302.617 €
Digital monitoring relay cos phi and current monitoring for IO-Link 90...690 V AC, 0.2...10 A overshoot and undershoot ON-delay time Tripping delay time Hysteresis 0.1 to 3.0 A 2 change-over contacts, screw terminal Cos phi monitoring relay with digital setting SIRIUS 3UG4 for monitoring the power factor and active current for overshooting, e.g. in the event of soiled filter systems, or for undershooting, e.g. in the event of a torn V-belt or pump idling.
Technical specifications
Filter Property Value
Connection screw connection
Version digital, COS-PHI and current monitoring. for IO -Link. 90-690 V
Coil voltage (DC) 24 V
switching current 5 A
Contact type 2 Form C (NO/NC)
Logistics
Property Value
Customs tariff number 85364900
Country of origin CZ
Compliance
Property Value
Substance description lead, lead monoxide (lead oxide), Dicyclohexyl phthalate
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
