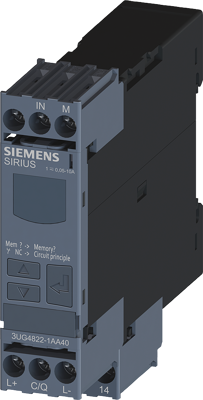

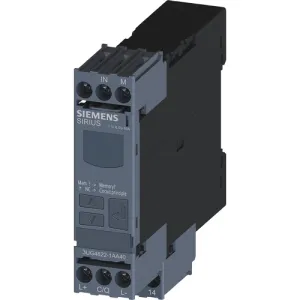

3UG4822-1AA40 | Siemens
Current relay, digital, current monitoring, for IO -Link, 0.05-10 A, 1 Form C (NO/NC), 24 V (DC), 5 Ω, 5 A, 3UG4822-1AA40
Order No.: 27H9022
EAN: 4011209895805
MPN:
3UG4822-1AA40
3UG48221AA40
Unit Price (€ / pc.)
223.125 € *
Standard delivery time from the manufacturer is: 1 Week
Digital monitoring relay Current monitoring, 22.5 mm for IO-Link 0.05...10.0 A AC/DC Overcurrent and undercurrent Transformer scaling factor Hysteresis 0.01 to 5.0 A ON-delay time Tripping delay time 1 change-over contact, screw terminal Current monitoring relay with digital setting SIRIUS 3UG4 for monitoring currents for overshooting and undershooting, e.g. for ensuring the functionality of electrical loads or for open-circuit monitoring.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Coil resistance | 5 Ω | |
| Version | digital, current monitoring, for IO -Link, 0.05-10 A | |
| Coil voltage (DC) | 24 V | |
| switching current | 5 A | |
| Contact type | 1 Form C (NO/NC) |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Substance description | lead, lead monoxide (lead oxide), Dicyclohexyl phthalate |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
