3UG4641-1CS20 | Siemens

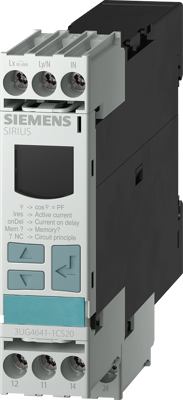

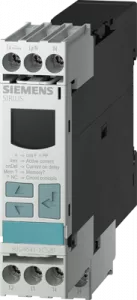

Current relay, COS-PHI and current monitoring of 90-690 V AC, 2 Form C (NO/NC), 690 V (AC), 5 A, 3UG4641-1CS20
Order No.: 27H9012
EAN: 4011209665156
MPN:
3UG4641-1CS20
3UG46411CS20
Unit Price (€ / pc.)
255.5763 € *
Standard delivery time from the manufacturer is: 1 Week
Digital monitoring relay cos phi and current monitoring from 90-690 V AC overshoot and undershoot self-supplied 50 to 60 Hz AC Noise pulses delay 0.1 to 20 s Hysteresis for (I) 0.1 to 2 A 2 change-over contacts with or without fault buffer screw terminal Successor product for 3UG3014 Cos phi monitoring relay with digital setting SIRIUS 3UG4 for monitoring the power factor and active current for overshooting, e.g. in the event of soiled filter systems, or for undershooting, e.g. in the event of a torn V-belt or pump idling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| switching current | 5 A | |
| Coil voltage (AC) | 690 V | |
| Version | COS-PHI and current monitoring of 90-690 V AC | |
| Contact type | 2 Form C (NO/NC) |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead, lead monoxide (lead oxide) |
| Date of RoHS guidelines | 3/31/15 |
