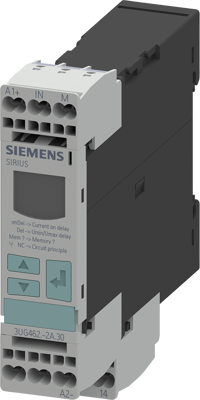

3UG4621-2AA30 | Siemens
Current relay, 2 to 500 mA AC/DC, 1 Form C (NO/NC), 24 V (DC), 24 V (AC), 500 Ω, 5 A, 3UG4621-2AA30
Order No.: 27H8994
EAN: 4011209642621
MPN:
3UG4621-2AA30
3UG46212AA30
Unit Price (€ / pc.)
191.8756 € *
Standard delivery time from the manufacturer is: 1 Week
Digital monitoring relay Current monitoring, 22.5 mm from 2-500 mA AC/DC overshoot and undershoot Supply voltage: 24 V AC/DC 50 to 60 Hz DC and AC without galvanic isolation to measuring circuit ON delay and noise pulses delay 0.1 to 20 s Hysteresis 0.1 to 250 mA 1 change-over contact with or without fault buffer Automatic reset spring-type connection system Current monitoring relay with digital setting SIRIUS 3UG4 for monitoring currents for overshooting and undershooting, e.g. for ensuring the functionality of electrical loads or for open-circuit monitoring.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil voltage (DC) | 24 V | |
| Connection | spring-clamp connection | |
| switching current | 5 A | |
| Coil voltage (AC) | 24 V | |
| Coil resistance | 500 Ω | |
| Version | 2 to 500 mA AC/DC | |
| Contact type | 1 Form C (NO/NC) |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364190 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead, lead monoxide (lead oxide) |
| Date of RoHS guidelines | 3/31/15 |
