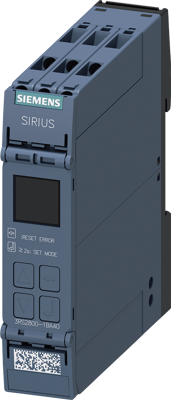

3RS2800-1BA40 | Siemens
Temperature relay, universal, display, IO-Link, 2 Form C (NO/NC), 24 V (DC), 5 A, 3RS2800-1BA40
Order No.: 27H8839
EAN: 4047621058832
MPN:
3RS2800-1BA40
3RS28001BA40
Unit Price (€ / pc.)
359.2729 € *
Standard delivery time from the manufacturer is: 2 Weeks
Temperature monitoring relay with display and IO-Link for resistance temperature sensors and thermocouples, 24 V DC, Width 22.5 mm, 2 change-over contacts, screw terminal Temperature monitoring relay SIRIUS 3RS2 for the measurement of temperatures in solid, liquid and gaseous media, e.g. for open and closed loop control of processes or for protecting motors and plants against excessive temperatures.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | universal, display, IO-Link | |
| Contact type | 2 Form C (NO/NC) | |
| switching current | 5 A | |
| Coil voltage (DC) | 24 V | |
| Connection | screw connection | |
| Contact material | AgSnO2 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | lead, 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one, lead monoxide (lead oxide) |
| SVHC free | No |
| RoHS conform | Yes |
