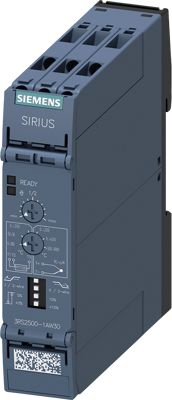

3RS2500-1AW30 | Siemens
Temperature relay, PT100, thermocouple J, K, 1 Form C (NO/NC), 240 V (DC), 240 V (AC), 5 A, 3RS2500-1AW30
Order No.: 27H8832
EAN: 4047621058788
MPN:
3RS2500-1AW30
3RS25001AW30
Unit Price (€ / pc.)
185.3187 € *
Standard delivery time from the manufacturer is: 2 Weeks
Temperature monitoring relay Pt100, Thermocouple J, K 1 threshold value, Width 22.5 mm Overshoot and undershoot 24 - 240 V AC/DC 1 change-over contact, quiescent current principle screw terminal Temperature monitoring relay SIRIUS 3RS2 for the measurement of temperatures in solid, liquid and gaseous media, e.g. for open and closed loop control of processes or for protecting motors and plants against excessive temperatures.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil voltage (AC) | 240 V | |
| Version | PT100, thermocouple J, K | |
| switching current | 5 A | |
| Contact type | 1 Form C (NO/NC) | |
| Contact material | AgSnO2 | |
| Connection | screw connection | |
| Coil voltage (DC) | 240 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead, lead monoxide (lead oxide) |
| SVHC free | No |
