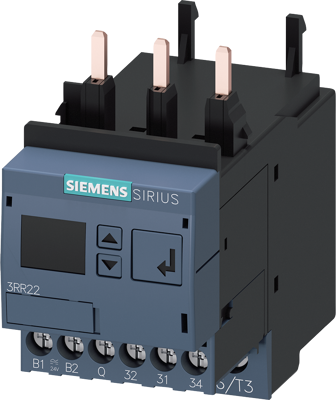

3RR2242-1FA30 | Siemens
Monitoring relays, apparent/active current monitoring 4-40 A, 1 Form C (NO/NC), 24 V (DC), 24 V (AC), 8 A, 3RR2242-1FA30
Order No.: 27H3236
EAN: 4011209787292
MPN:
3RR2242-1FA30
3RR22421FA30
Unit Price (€ / pc.)
240.3324 € *
Standard delivery time from the manufacturer is: 1 Week
Monitoring relay, can be mounted to Contactor 3RT2, Size S0 standard, digitally adjustable Apparant/active current monitoring 4...40 A, 20...400 Hz, 3-phase Supply 24 V AC/DC 1 change-over contact, 1 semiconductor output for alarm and warning Monitoring for Current overshoot and undershoot Phase failure, Cable break Phase sequence Residual current Blocking current Warning and alarm thresholds with or without fault buffer ON delay 0-99 s Noise pulse suppression 0-30 s Pause after fault 0-300 min Screw connection system Monitoring relays SIRIUS 3RR2 for plugging into SIRIUS 3RT2 contactors or for stand-alone installation for multi-phase current monitoring of the entire plant or of the driven process.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Version | apparent/active current monitoring 4-40 A | |
| Coil voltage (DC) | 24 V | |
| switching current | 8 A | |
| Contact type | 1 Form C (NO/NC) | |
| Coil voltage (AC) | 24 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Substance description | lead, 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one, lead monoxide (lead oxide) |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
