3ND1830 | Siemens

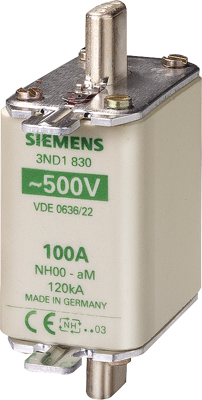

NH fuse NH00, 100 A, aM, 440 V (DC), 500 V (AC), 120 kA breaking capacity, 3ND1830
Order No.: 27H2477
EAN: 4001869020334
MPN:
3ND1830
Unit Price (€ / pc.)
15.6366 € *
Available: 1 pcs.
Total Price:
15.64 € *
Price list
Quantity
Price per unit*
1 pcs.
15.6366 €
3 pcs.
15.3272 €
*incl. VAT plus shipping costs
Subject to prior sale
LV HRC fuse element, NH00, In: 100 A, aM, Un AC: 500 V, Un DC: 440 V, front indicator LV HRC fuse link SENTRON 3ND for switching device protection in motor circuits.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | ceramic tube | |
| Width | 30 mm | |
| Version | NH fuse | |
| Rated voltage (DC) | 440 V | |
| Length | 59 mm | |
| Height | 80 mm | |
| Breaking capacity | 120 kA | |
| Design | NH00 | |
| Rated voltage (AC) | 500 V | |
| Tripping characteristics | aM | |
| Rated current | 100 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85361090 |
| Country of origin | GR |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
