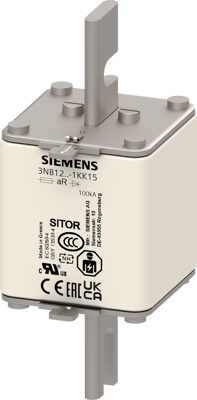

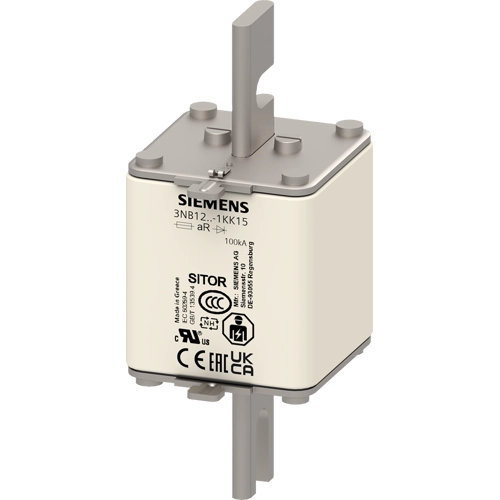

3NB1247-1KK15 | Siemens
NH fuse NH2, 900 A, aR, 500 V (DC), 100 kA breaking capacity, 3NB1247-1KK15
Unit Price (€ / pc.)
319.1699 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
SITOR fuse size 2 900A aR 500V DC/600V VSI 600V DC UL @MBC 8xIn screw connection M10 110mm slotted knives.
Technical specifications
| Version | NH fuse | |
| Tripping characteristics | aR | |
| Breaking capacity | 100 kA | |
| Design | NH2 | |
| Width | 60 mm | |
| Enclosure | ceramic tube | |
| Height | 148 mm | |
| Length | 71.3 mm | |
| Rated voltage (DC) | 500 V | |
| Rated current | 900 A |
Download
Logistics
| Country of origin | GR |
| Customs tariff number | 85361090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
