3NA7832 | Siemens

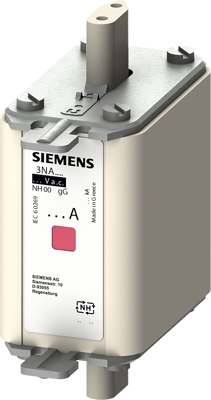

NH fuse NH00, 125 A, gG, 250 V (DC), 500 V (AC), 3NA7832
Order No.: 27H2462
EAN: 4001869071732
MPN:
3NA7832
Unit Price (€ / pc.)
6.0095 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
6.01 € *
Price list
Quantity
Price per unit*
1 pcs.
6.0095 €
3 pcs.
5.8905 €
*incl. VAT plus shipping costs
Subject to prior sale
LV HRC fuse element, NH00, In: 125 A, gG, Un AC: 500 V, Un DC: 250 V, Combined indicator, live grip lugs LV HRC fuse link SENTRON 3NA7 for selective system and line protection.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 77.8 mm | |
| Rated current | 125 A | |
| Rated voltage (AC) | 500 V | |
| Version | NH fuse | |
| Tripping characteristics | gG | |
| Rated voltage (DC) | 250 V | |
| Width | 30 mm | |
| Enclosure | ceramic tube | |
| Design | NH00 | |
| Length | 59.7 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85361090 |
| Country of origin | GR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
