3NA7242 | Siemens

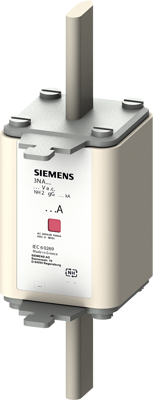

NH fuse NH2, 224 A, gG, 440 V (DC), 500 V (AC), 120 kA breaking capacity, 3NA7242
Order No.: 27H2422
EAN: 4001869071978
MPN:
3NA7242
Unit Price (€ / pc.)
15.6366 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
15.64 € *
Price list
Quantity
Price per unit*
1 pcs.
15.6366 €
3 pcs.
15.3272 €
*incl. VAT plus shipping costs
Subject to prior sale
LV HRC fuse element, NH2, In: 224 A, gG, Un AC: 500 V, Un DC: 440 V, Combined indicator, live grip lugs LV HRC fuse link SENTRON 3NA7 for selective system and line protection.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tripping characteristics | gG | |
| Breaking capacity | 120 kA | |
| Rated voltage (DC) | 440 V | |
| Length | 66.9 mm | |
| Design | NH2 | |
| Rated current | 224 A | |
| Width | 46.6 mm | |
| Height | 147.6 mm | |
| Rated voltage (AC) | 500 V | |
| Enclosure | ceramic tube | |
| Version | NH fuse |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GR |
| Customs tariff number | 85361090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
