3SU1100-4BL11-1NA0 | Siemens

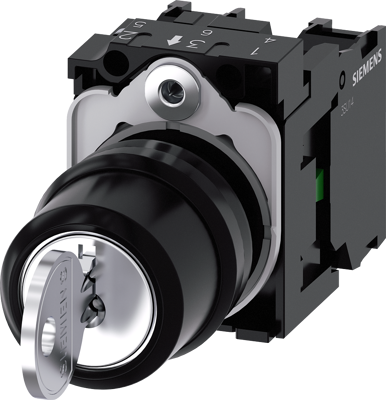

Key-operated switch RONIS, 22 mm, round, plastic,key removal I+O+II
Unit Price (€ / pc.)
53.5143 € *
Available: 1 pcs.
RONIS key-operated switch, 22 mm, round, plastic, lock number SB30, with 2 keys, 3 switch positions I-O-II, latching, 10:30h/12h/13:30h, Key removal I+O+II, with holder, 1 NO, 1 NO, screw terminal, possible special locks: SB31, 421, 455 Key-operated switches SIRIUS ACT for meeting higher demands for access security.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Trigger position key | 1 + 0 + 2 | |
| Connection | screw connection | |
| Degree of protection (IP) | IP20/IP66/IP67/IP69K | |
| Rotation angle | 2 x 45° | |
| Latching switching function | Off-On | |
| contact surface | silver-plated | |
| Version | latching | |
| Installation diameter | 22.3 mm | |
| Pin number | 2 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
