6AV2143-6DB00-0VL0 | Siemens

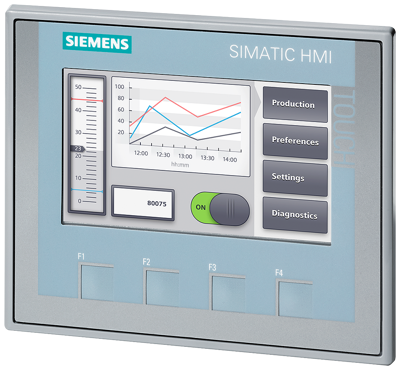

4.3" HMI panel, touch/key operation, 480 x 272, 6AV2143-6DB00-0VL0
Unit Price (€ / pc.)
534.4409 € *
Standard delivery time from the manufacturer is: 1 Week
6AV21436DB000VL0, Siemens
SIMATIC HMI, OEM KTP400 Basic AVL, Basic Panel, front adaptation, key/touch operation, 4 TFT display, 65536 colors, PROFINET interface, configurable from WinCC Basic V13/ STEP 7 Basic V13, contains open-source software, which is provided free of charge see enclosed CD Basic Panels are perfect for the cost-effective implementation of simple visualization tasks at machine level. Their basic features and functionality as well as an especially attractive price make them perfect entry-level devices.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of keys | 4 | |
| Width | 140 mm | |
| Resolution | 480 x 272 | |
| screen diagonal | 4.3" | |
| Version | touch/key operation | |
| Height | 116 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85371098 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead, lead monoxide (lead oxide) |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
