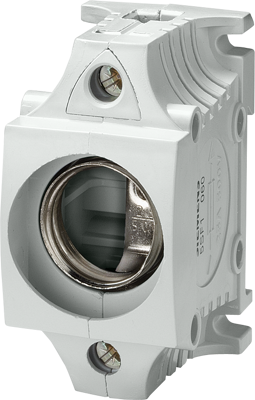

5SF1260 | Siemens
DIAZED fuse base, III, 63 A, 500 V, DIN rail, 5SF1260
Unit Price (€ / pc.)
13.7802 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
13.78 € *
Price list
Quantity
Price per unit*
1 pcs.
13.7802 €
3 pcs.
13.5184 €
*incl. VAT plus shipping costs
Subject to prior sale
DIAZED fuse base Size III Molded plastic, 1-pole touch-protected (BGV A2) Access: Double function terminal Outgoing feeder: Box terminal 63 A 500 V AC NEOZED and DIAZED fuse systems with wide range of accessories. As an important component of the SENTRON protective components for electronic installations, the NEOZED and DIAZED fuse system from Siemens provides effective protection for personnel, equipment and plants with reliable shutdown in the event of an overload or short circuit. It is primarily used in distribution technology and industrial switchboards. The system is easy to use and is also approved for domestic installation.
Features
- Harmonized range of products and accessories
- Proven quality since 1906
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 63 A | |
| For Fuse | III | |
| Touch protection | 1 pole | |
| Type of mounting | DIN rail | |
| Rated voltage | 500 V | |
| Version | closed |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
