3NW7431-0HG | Siemens

Fuse holder, class CC, 30 A, 600 V, 3NW7431-0HG

Order No.: 70P6391
EAN: 4001869392400
MPN:
3NW7431-0HG
3NW74310HG
Series: SENTRON

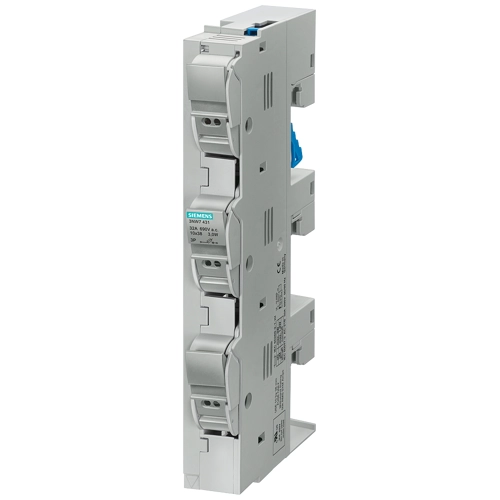

3NW7431-0HG Siemens Fuse Holders
Image may differ
Unit Price (€ / pc.)
86.3583 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
86.36 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
86.3583 €

3NW74310HG, Siemens

SENTRON, fuse holder, Class CC, 3-pole, In: 30 A, Un AC: 600 V, for busbar system 8US 60 mm, respect national installation rules! UL fuse systems class CC and class J. As an important component of the SENTRON protective components for electronic installations, the 3NW fuse system from Siemens provides effective protection for personnel, equipment and plants with reliable shutdown in the event of an overload or short-circuit. Class CC fuses are used for branch circuit protection applications. Class J fuse links are used for branch circuit protection and in the feeder circuit. Key features of the Siemens NW fuses:.

Features

  • Easier export thanks to UL and CSA approvals for typical applications on the North American market
  • Modern design with touch protection ensures safe installation
  • Dead-state fuse replacement in fuse holders possible
Technical specifications
Degree of protection (IP) IP20
For Fuse class CC
Rated current 30 A
Version closed
Rated voltage 600 V
Logistics
Country of origin DE
Customs tariff number 85369095
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
