3SE2912-2AB20 | Siemens
Foot switch, 1 Form A (N/O) + 1 Form B (N/C), Off-On, 16 A/400 VAC, 3SE2912-2AB20
Order No.: 80P7246
EAN: 4011209576629
MPN:
3SE2912-2AB20
3SE29122AB20
Unit Price (€ / pc.)
191.947 € *
Standard delivery time from the manufacturer is: 1 Week

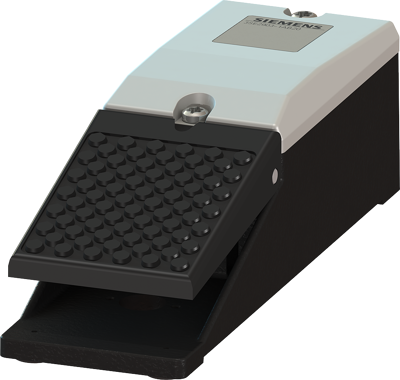

Foot switch, 1-pedal without cover, with latching Metal enclosure IP65, 1 NO+1 NC, Cable entry M20 x 1.5 foot switch SIRIUS 3SE29 as an operation device on especially hazardous parts of the plant, e.g. on presses and punches, ideal where the hands are to be kept free.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Degree of protection (IP) | IP65 | |
| Color of body | black/gray | |
| Breaking capacity | 16 A/400 VAC | |
| Shift position | Off-On | |
| Connection | cable connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
