6ES7647-0KA02-0AA2 | Siemens
SIMATIC IOT IOT2000 10x DI
Unit Price (€ / pc.)
63.5341 € *
Standard delivery time from the manufacturer is: 1 Week
6ES76470KA020AA2, Siemens

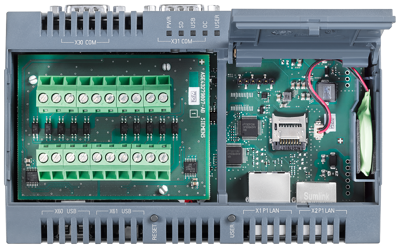

SIMATIC IoT2000, input module sink/source, 10x DI, ARDUINO Shield for SIMATIC IoT2020 and IoT2040 The SIMATIC IOT2000 Input Module Sink/Source allows for direct connection of non-time-critical sensor data to the SIMATIC IOT2000 via its ten digital inputs. Due to the potential-free design of the inputs, the input wiring can optionally be done in Sink or Source. The module can read in any channel individually as Sink/Source without additional configuration.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 32 mm | |
| Rated voltage | 24 V | |
| Rated current | 2.1 A | |
| Width | 75 mm | |
| Assembly | DIN rail | |
| Height | 57 mm | |
| Version | input module |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead, lead monoxide (lead oxide) |
