3SU1158-1HB20-1PT0 | Siemens
Emergency stop, rotary release, mounting Ø 22.3 mm, illuminated, LED: 1, red, 500 V, 2 Form B (N/C), 3SU1158-1HB20-1PT0
Order No.: 27H1188
EAN: 4047621043586
MPN:
3SU1158-1HB20-1PT0
3SU11581HB201PT0
Unit Price (€ / pc.)
77.6475 € *
Available: 1 pcs.

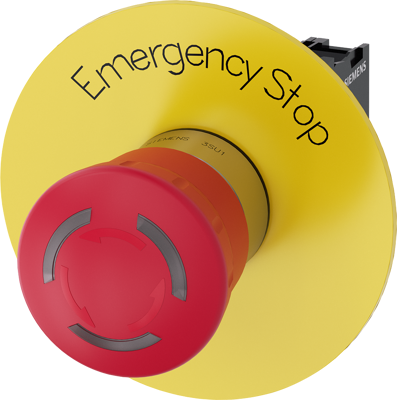

EMERGENCY STOP mushroom pushbutton, illuminable, 22 mm, round, metal, shiny, red, 40 mm, positive latching, acc. to EN ISO 13850, rotate-to-unlatch, with yellow washer, inscription: EMERGENCY STOP, with holder, 1 NC, 1 NC, LED module with integrated LED, 24-240 V AC/DC, red, screw terminal EMERGENCY STOP mushroom pushbuttons SIRIUS ACT in accordance with EN ISO 13850 for controlling safety-related applications, cannot be overruled.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 2 Form B (N/C) | |
| Height | 40 mm | |
| Degree of protection (IP) | IP20/IP66/IP67/IP69/IP69K | |
| Resetting | rotary release | |
| Number of LEDs | 1 | |
| illuminated | Yes | |
| Colour of the LED | red | |
| Contact function | latching | |
| Rated voltage | 500 V | |
| Installation diameter | 22.3 mm | |
| Type of mounting | panel mounting | |
| Collar shape of the front frame | round |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| Substance description | Lead, lead monoxide (lead oxide) |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
