3SU1150-1GB20-3PW0 | Siemens

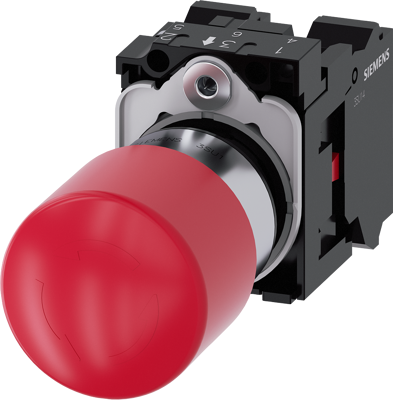

Emergency stop, rotary release, mounting Ø 22.3 mm, unlit, 500 V, 2 Form B (N/C), 3SU1150-1GB20-3PW0
Order No.: 27H1166
EAN: 4047621078564
MPN:
3SU1150-1GB20-3PW0
3SU11501GB203PW0
Unit Price (€ / pc.)
54.0855 € *
Standard delivery time from the manufacturer is: 1 Week
EMERGENCY STOP mushroom pushbutton, 22 mm, round, metal, shiny, red, 30 mm, positive latching, according to DIN EN ISO 13850, rotate-to-unlatch, washer for EMERGENCY STOP, yellow, 60 mm, without inscription, with holder, 1 NC, 1 NC, spring-loaded terminal, front plate mounting EMERGENCY STOP mushroom pushbuttons SIRIUS ACT in accordance with EN ISO 13850 for controlling safety-related applications, cannot be overruled.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 500 V | |
| Latching switching function | 2 Form B (N/C) | |
| Contact function | latching | |
| Degree of protection (IP) | IP66/IP67/IP69/IP69K | |
| Type of labeling | red | |
| Installation diameter | 22.3 mm | |
| Height | 40 mm | |
| Resetting | rotary release | |
| illuminated | No | |
| Collar shape of the front frame | round | |
| Type of mounting | panel mounting |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| RoHS conform | Yes |
| SVHC free | Yes |
