3SU1100-1GB20-1PA0 | Siemens

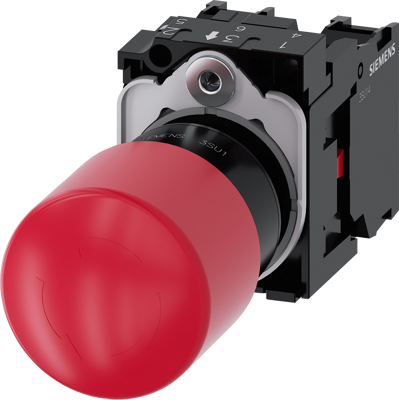

Emergency stop, rotary release, mounting Ø 22.3 mm, unlit, 500 V, 2 Form B (N/C), 3SU1100-1GB20-1PA0
Order No.: 27H1146
EAN: 4047621064550
MPN:
3SU1100-1GB20-1PA0
3SU11001GB201PA0
Unit Price (€ / pc.)
51.6103 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
EMERGENCY STOP mushroom pushbutton, 22 mm, round, plastic, red, 30 mm, positive latching, according to EN ISO 13850, rotate-to-unlatch, without yellow backing plate, with holder, 1 NC, 1 NC, screw terminal EMERGENCY STOP mushroom pushbuttons SIRIUS ACT in accordance with EN ISO 13850 for controlling safety-related applications, cannot be overruled.
Technical specifications
| Contact function | latching | |
| Resetting | rotary release | |
| Installation diameter | 22.3 mm | |
| Degree of protection (IP) | IP66/IP67/IP69/IP69K | |
| Type of mounting | panel mounting | |
| Height | 40 mm | |
| Type of labeling | red | |
| illuminated | No | |
| Latching switching function | 2 Form B (N/C) | |
| Collar shape of the front frame | round | |
| Rated voltage | 500 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
| Sustainable | Yes |
