3SU1050-1HA20-0AA0 | Siemens

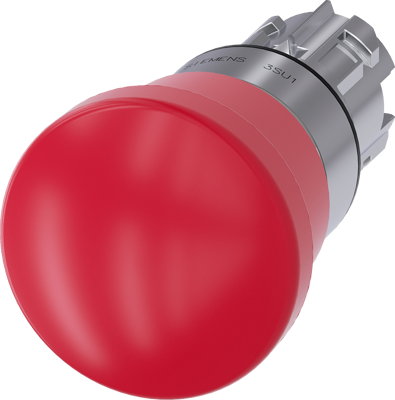

Emergency stop, pull release, mounting Ø 22.3 mm, unlit, 3SU1050-1HA20-0AA0
Order No.: 27H1089
EAN: 4011209946705
MPN:
3SU1050-1HA20-0AA0
3SU10501HA200AA0
Unit Price (€ / pc.)
31.9872 € *
Standard delivery time from the manufacturer is: 3 Weeks
EMERGENCY STOP mushroom pushbutton, 22 mm, round, metal, shiny, red, 40 mm, positive latching, acc. to EN ISO 13850, pull-to-unlatch mechanism EMERGENCY STOP mushroom pushbuttons SIRIUS ACT in accordance with EN ISO 13850 for controlling safety-related applications, cannot be overruled.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Installation diameter | 22.3 mm | |
| Type of labeling | red | |
| Resetting | pull release | |
| Contact function | latching | |
| Collar shape of the front frame | round | |
| Type of mounting | panel mounting | |
| illuminated | No | |
| Degree of protection (IP) | IP66/IP67/IP69/IP69K |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| RoHS conform | Yes |
| SVHC free | Yes |
