6EP3346-7SB00-3AX0 | Siemens

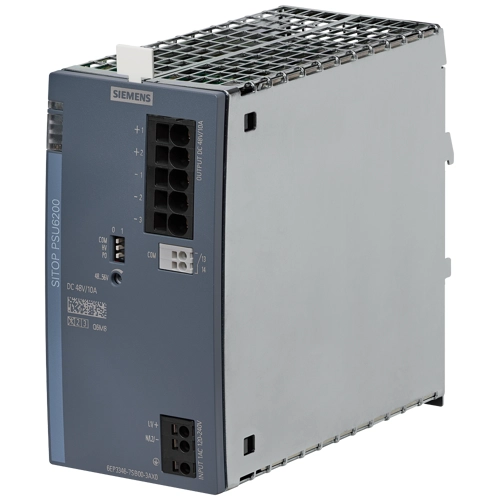

DIN rail power supply, 48 VDC, 10 A, 480 W, 6EP3346-7SB00-3AX0
6EP33467SB003AX0, Siemens
SITOP PSU6200 48 V/10 A stabilized power supply input: 120/230 V AC output: 48 V DC/10 A with diagnostic interface The 1-phase SITOP PSU6200 are technology power supplies for sophisticated solutions and offer maximum functionality for use in complex plants and machines. The wide-range input allows a connection to almost any electricity supply network worldwide and ensures a high degree of safety even if there are large voltage supply deviations. The extra power supplies up to 150% of the rated current for a short time. The extremely high degree of efficiency keeps energy consumption and heat buildup in the control cabinet low, and the compact metal enclosure also saves space. Regardless of the industry or requirement: Siemens offers reliable and efficient power supplies for any plant.
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 48 VDC | |
| Power | 480 W | |
| Depth | 155 mm | |
| efficiency | 95.8 % | |
| Height | 135 mm | |
| Input voltage AC | 85-275 VDC | |
| Width | 70 mm | |
| Number of outputs | 1 | |
| Output current | 10 A | |
| Degree of protection (IP) | IP20 |
| Property | Value |
|---|---|
| Country of origin | AT |
| Customs tariff number | 85044083 |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
