6EP3343-0SA00-0AY0 | Siemens

DIN rail power supply, 24 VDC, 10 A, 120 W, 6EP3343-0SA00-0AY0

Order No.: 27G911
EAN: 4025515155478
MPN:
6EP3343-0SA00-0AY0
6EP33430SA000AY0
Series: SITOP

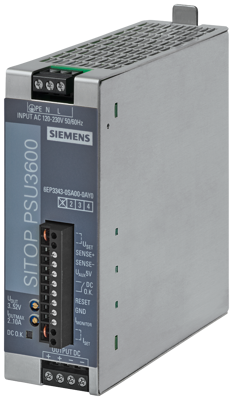

6EP3343-0SA00-0AY0 Siemens DIN Rail Power Supplies
Image may differ
Unit Price (€ / pc.)
242.403 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
242.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
242.403 €

6EP33430SA000AY0, Siemens

SITOP PSU3600 flexi Stabilized power supply Input: 120-230 V AC Output: 3-52 V DC/10 A, 120 W The 1-phase power supply SITOP PSU3600 flexi comes with an adjustable output voltage of 3 to 52 V. It is used in all areas of applications in which a special voltage that deviates from the standard 24 V is required. The option to change the output voltage dynamically during operation, for example, speed control of DC motors, fans or voltage adjustment in test rigs, as well as numerous special functions, such as sense cable and current monitor, open up a wide range of application options.

Technical specifications
Filter Property Value
Input voltage AC 88-250 VDC
Height 125 mm
Degree of protection (IP) IP20
Output voltage DC 24 VDC
efficiency 88 %
Power 120 W
Output current 10 A
Depth 135 mm
Number of outputs 1
Width 42 mm
Logistics
Property Value
Customs tariff number 85044083
Country of origin HU
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
