6EP3333-7LB00-0AX0 | Siemens
DIN rail power supply, 24 VDC, 3.7 A, 89 W, 6EP3333-7LB00-0AX0
Unit Price (€ / pc.)
168.2779 € *
Standard delivery time from the manufacturer is: 1 Week
6EP33337LB000AX0, Siemens

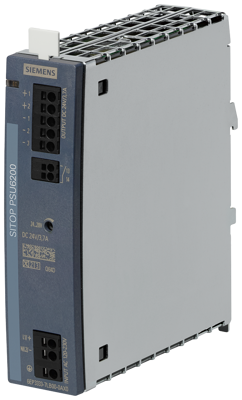

SITOP PSU6200 3.7 A NEC class II Stabilized power supply Input: 120 - 230 V AC, (120 - 240 V DC) Output: 24 V DC/3.7 A The 1-phase SITOP PSU6200 are technology power supplies for demanding solutions that offer maximum functionality for use in complex plants and machines. The wide range input supports connection to each network worldwide and ensures security even during large fluctuations in voltage. In case of an overload, the PSU6200 supplies a constant current up to a voltage of 15 V DC. The very high efficiency keeps the energy consumption and the heat development in the control cabinet at low levels and the entire metal enclosure is also space-saving.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 125 mm | |
| Degree of protection (IP) | IP20 | |
| Height | 135 mm | |
| Width | 35 mm | |
| Power | 89 W | |
| efficiency | 89.3 % | |
| Output current | 3.7 A | |
| Output voltage DC | 24 VDC | |
| Number of outputs | 1 | |
| Input voltage AC | 99-275 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044083 |
| Country of origin | AT |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
