6EP3331-7SB00-0AX0 | Siemens
DIN rail power supply, 12 VDC, 1.3 A, 31.2 W, 6EP3331-7SB00-0AX0
6EP33317SB000AX0, Siemens

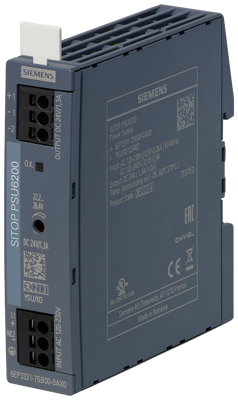

SITOP PSU6200 24 V/1.3 A Stabilized power supply Input: 120 - 230 V AC, (120 - 240 V DC) Output: 24 V DC/1.3 A The 1-phase SITOP PSU6200 mini are slim and space-saving power supplies for the low performance range. They are used in distributed applications in control boxes or in small control cabinets. They are characterized by the low power loss across the entire load range. The losses are very low even in idle, which makes these power supplies ideally suited for supply of machines and plants that are often in standby operation. The switch mode power supply has a wide-range input for AC and DC networks, whereby plug-in terminals support easy electrical connection. The large temperature range offers universal application options.
Degree of protection (IP) | IP20 | |
Depth | 88 mm | |
Output voltage DC | 12 VDC | |
Output current | 1.3 A | |
Width | 25 mm | |
Height | 100 mm | |
Power | 31.2 W | |
Number of outputs | 1 | |
efficiency | 86.3 % | |
Input voltage AC | 85-264 VAC, 110-275 VDC |
Country of origin | RO |
Customs tariff number | 85044083 |
Date of RoHS guidelines | 3/31/15 |
Substance description | Lead |
SVHC free | No |
RoHS conform | Yes |
