6EP3331-6SB00-0AY0 | Siemens
Power supply, 22.2 to 26.4 VDC, 1.3 A, 31.2 W, 6EP3331-6SB00-0AY0
Unit Price (€ / pc.)
69.4365 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
69.44 € *
Price list
Quantity
Price per unit*
1 pcs.
69.4365 €
3 pcs.
66.6519 €
5 pcs.
64.0934 €
*incl. VAT plus shipping costs
Subject to prior sale
Power supply, 6EP3331-6SB00-0AY0, Siemens
LOGO!Power are powerful power supplies that are extremely flexible in a variety of applications - for example in installation distributors - due to their flat, stepped profile. The 12 V and 24 V versions are ideally suited as power supplies for the LOGO! modules.
Features
- Reduced widths and therefore the narrowest device available on the market in its performance class
- Power loss at idle (standby) <0.3 W
- Operation with a direct voltage of 110 - 300 V DC

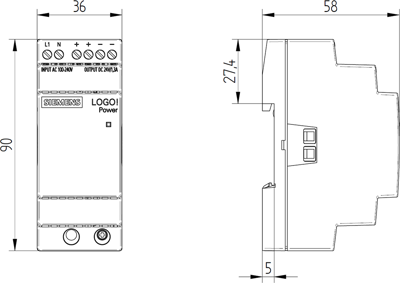

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 36 mm | |
| Degree of protection (IP) | IP20 | |
| Power | 31.2 W | |
| Input voltage AC | 100-240 VAC | |
| Output current | 1.3 A | |
| efficiency | 86 % | |
| Number of outputs | 1 | |
| Height | 90 mm | |
| Output voltage DC | 22.2 to 26.4 VDC | |
| Depth | 53 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | AT |
| Customs tariff number | 85043180 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
