6EP33230SA000BY0, Siemens

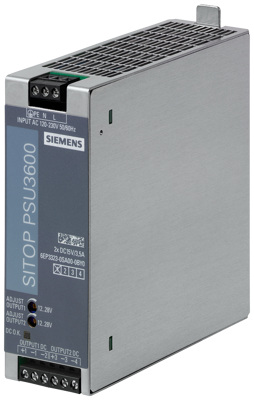

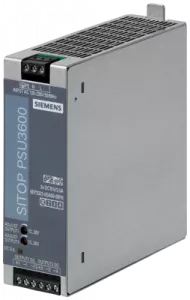

SITOP PSU3600 dual stabilized power supply Input: 120-230 V AC Output: 15 V/3,5 A 2x DC two potential-free outputs The single-phase power supply SITOP PSU3600 dual was developed as a two-voltage power supply unit with two outputs independent of each other in order to supply electronic consumers simultaneously with a positive and negative voltage. If the two floating outputs are connected in series, a supply voltage of e.g. ±15 V can be generated. Or the independent outputs are left separate and, thanks to the wide setting range of the output voltage of between 12 and 28 V individually for each output, different rated voltages, e.g. 24 V and 15 V, can be supplied to consumers using only one power supply unit. Furthermore, both outputs are power-limited in accordance with NEC Class2, thus opening up further possible applications.
