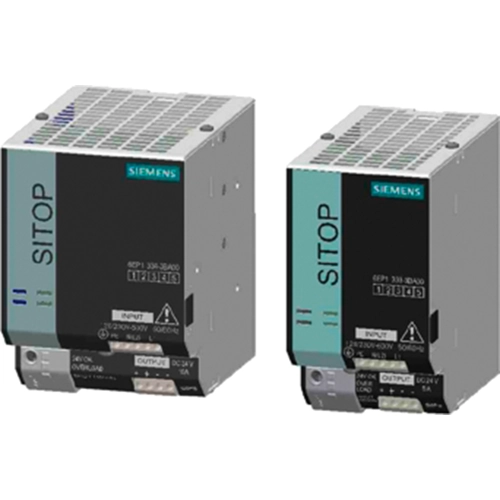

Power supply, 24 VDC, 40 A, 960 W, 6EP1437-3BA10
Power supply modules, single-phase to 3-phase, type Siemens SITOP modular.
Universal device for installation on standard rails; Output voltage: 24 VDC. Adjustment range: 24 to 28.8 VDC. Tolerance: ±3.0 %. Residual ripple: 100 mVpp. Support of parallel operation: selectable characteristic. Status display: 3 LEDs. Short-circuit protection: constant current or retentive shutdown. Safety class: class I. Degree of protection: IP 20. RF interference suppression: class B to EN 55022, limiting of input current harmonics to EN 61000-3-2. Operating temperatures: 0 to +60 °C. Functionality of the basic units can be expanded by means of expansion modules.
3-phase, 40 A output current, type 6EP1.
For three-phase connection; Rated input voltage: 400 to 500 VAC (320 to 575 VAC). Line frequency: 50/60 Hz (47 to 63 Hz). Rated input current: 2.6/2.1 A. Power failure backup: 15 ms. Efficiency: 93 %. Ambient temperatures: –10 to +60 °C. Connection: input 0.2 to 4.0 mm². Output: 0.33 to 10 mm². Dimensions: W 150, H 125, D 150 mm. Weight: 3400 g.
Type: 6EP1437-3BA10, power supply module
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 40 A | |
| Output voltage DC | 24 VDC | |
| Input voltage AC | 320-575 VAC | |
| Power | 960 W | |
| efficiency | 93 % | |
| Degree of protection (IP) | IP20 | |
| Width | 150 mm | |
| Height | 125 mm | |
| Depth | 150 mm |
| Property | Value |
|---|---|
| Customs tariff number | 85043180 |
| Country of origin | AT |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
