6EP1333-4BA00 | Siemens

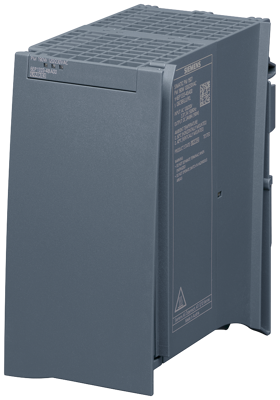

DIN rail power supply, 24 VDC, 8 A, 192 W, 6EP1333-4BA00
Unit Price (€ / pc.)
225.8620 € *
Standard delivery time from the manufacturer is: 1 Week
6EP13334BA00, Siemens
SIMATIC PM 1507 24 V/8 A Regulated power supply for SIMATIC S7-1500 input: 120/230 V AC, output: 24 V DC/8 A The SIMATIC PM1507 single-phase load power supply (PM = power module) with automatic input voltage range selection is optimally adapted to the SIMATIC S7-1500 controller in its design and functionality. It supplies 24 VDC to the S7-1500 system components, such as the CPU, system power supply (PS), input/output circuits of the I/O modules and, if applicable, sensors and actuators. Regardless of the industry or requirements, Siemens offers reliable and efficient power supplies for every plant.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output current | 8 A | |
| Degree of protection (IP) | IP20 | |
| Power | 192 W | |
| Width | 75 mm | |
| Height | 147 mm | |
| Depth | 129 mm | |
| efficiency | 90 % | |
| Output voltage DC | 24 VDC | |
| Input voltage AC | 120-230 VAC | |
| Number of outputs | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044083 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
