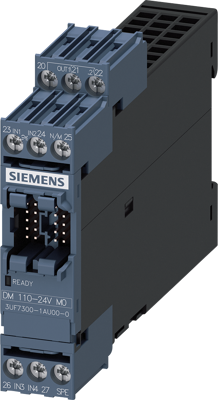

3UF7300-1AU00-0AX0 | Siemens
Input/output module for SIMOCODE pro V basic device, Inputs: 4, Outputs: 2, (W x H x D) 22.5 x 92 x 124 mm, 3UF7300-1AU00-0AX0
Order No.: 27H8948
EAN: 4047621077970
MPN:
3UF7300-1AU00-0AX0
3UF73001AU000AX0
Unit Price (€ / pc.)
247.1868 € *
Standard delivery time from the manufacturer is: On Request
Digital module, 4 inputs and 2 relay outputs, Input voltage 110-240 V AC/DC Relay outputs monostable, with coated printed circuit boards, max. 2 digital modules, for SIMOCODE pro V basic unit.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 124 mm | |
| Number of digital outputs | 2 | |
| Height | 92 mm | |
| Width | 22.5 mm | |
| Number of digital inputs | 4 | |
| Suitable for | SIMOCODE pro V basic device | |
| Version | digital module |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85371098 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead, lead monoxide (lead oxide) |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
