3TH4253-0BG8 | Siemens

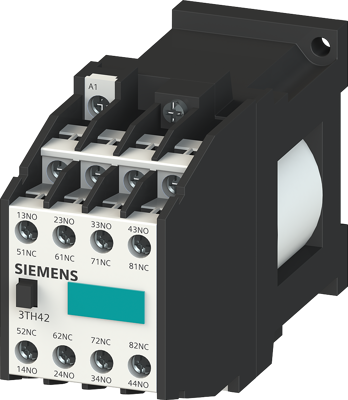

Auxiliary contactor, 8 pole, 6 A, 5 Form A (N/O) + 3 Form B (N/C), coil 110-140 VDC, screw connection, 3TH4253-0BG8
Order No.: 27H5398
EAN: 4011209133266
MPN:
3TH4253-0BG8
3TH42530BG8
Unit Price (€ / pc.)
148.4763 € *
Standard delivery time from the manufacturer is: 3 Weeks
Contactor relay, 53E, DIN EN 50011, 5NO + 3NC, screw terminal DC operation 90 V-140 V DC Auxiliary contactor 3TH4 for switching the control signals in the control circuit.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Degree of protection (IP) | IP00 | |
| Latching switching function | 5 Form A (N/O) + 3 Form B (N/C) | |
| Control Voltage | 110-140 VDC | |
| Assembly | DIN rail | |
| Version | auxiliary contactor | |
| Pin number | 8 pole | |
| Rated current | 6 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
