3RT2517-1AF00 | Siemens

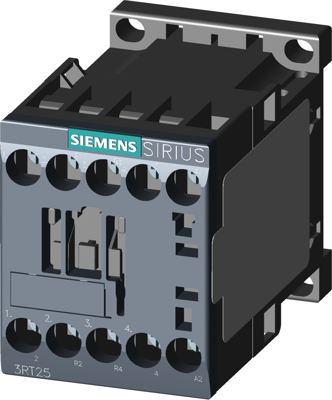

Power contactor, 4 pole, 12 A, 400 V, 2 Form A (N/O) + 2 Form B (N/C), coil 110 VAC, screw connection, 3RT2517-1AF00
Order No.: 27H4960
EAN: 4011209844575
MPN:
3RT2517-1AF00
3RT25171AF00
Unit Price (€ / pc.)
60.095 € *
Standard delivery time from the manufacturer is: 1 Week
Power contactor, AC-3, 12 A, 5.5 kW / 400 V, 4-pole, 110 V AC, 50/60 Hz, main contacts: 2 NO + 2 NC, screw terminal, size: S00 contactor SIRIUS 3RT25 for changing the polarity of hoisting gear motors or switching two separate loads.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Rated Voltage | 400 V | |
| Degree of protection (IP) | IP20 | |
| Latching switching function | 2 Form A (N/O) + 2 Form B (N/C) | |
| Control Voltage | 110 VAC | |
| Assembly | DIN rail | |
| Version | power contactor | |
| Pin number | 4 pole | |
| Rated current | 12 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
