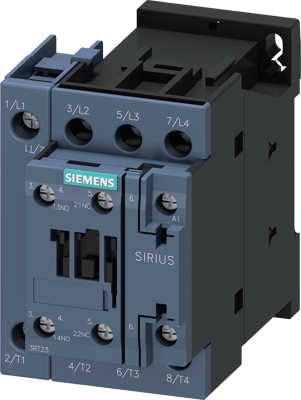

3RT2326-1AP00-4AA0 | Siemens
Contactor, 4 pole, 32 A, 400 V, 1 Form A (N/O) + 1 Form B (N/C), coil 230 VAC, screw connection, 3RT2326-1AP00-4AA0
Order No.: 27H4917
EAN: 4047621017587
MPN:
3RT2326-1AP00-4AA0
3RT23261AP004AA0
Unit Price (€ / pc.)
130.9952 € *
Standard delivery time from the manufacturer is: 1 Week
Power contactor, AC-3, 32 A, 15 kW / 400 V, 4-pole, 230 V AC, 50 Hz, auxiliary contacts: 1 NO + 1 NC, screw terminal, size: S0 Contactor SIRIUS 3RT23 for switching resistive loads.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Rated Voltage | 400 V | |
| Degree of protection (IP) | IP20 | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Control Voltage | 230 VAC | |
| Assembly | DIN rail | |
| Version | power contactor | |
| Pin number | 4 pole | |
| Rated current | 32 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
