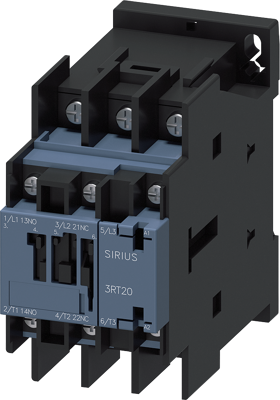

3RT2023-4AK60 | Siemens
Power contactor, 3 pole, 9 A, 400 V, 1 Form A (N/O) + 1 Form B (N/C), coil 110-120 VAC, ring cable lug connection, 3RT2023-4AK60
Order No.: 27H4351
EAN: 4011209838949
MPN:
3RT2023-4AK60
3RT20234AK60
Unit Price (€ / pc.)
44.0538 € *
Standard delivery time from the manufacturer is: On Request
Power contactor, AC-3e/AC-3, 9 A, 4 kW / 400 V, 3-pole, 110 V AC, 50 Hz / 120 V, 60 Hz, auxiliary contacts: 1 NO + 1 NC, ring cable lug connection, size: S0 Power contactor SIRIUS 3RT2 for switching motors.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | ring cable lug connection | |
| Rated Voltage | 400 V | |
| Degree of protection (IP) | IP20 | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Control Voltage | 110-120 VAC | |
| Assembly | DIN rail | |
| Version | power contactor | |
| Pin number | 3 pole | |
| Rated current | 9 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
