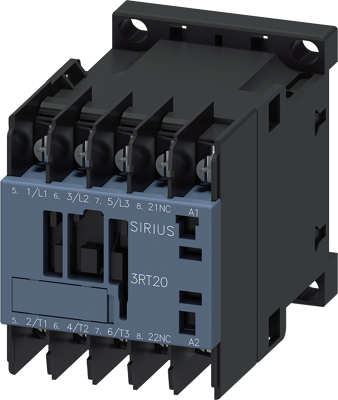

3RT2018-4AN62 | Siemens
Power contactor, 3 pole, 16 A, 400 V, 1 Form B (N/C), coil 220 VAC, ring cable lug connection, 3RT2018-4AN62
Order No.: 27H4298
EAN: 4011209844933
MPN:
3RT2018-4AN62
3RT20184AN62
Unit Price (€ / pc.)
66.521 € *
Standard delivery time from the manufacturer is: On Request
Power contactor, AC-3e/AC-3, 16 A, 7.5 kW / 400 V, 3-pole, 200 V AC, 50 Hz / 200-220 V, 60 Hz, auxiliary contacts: 1 NC, ring cable lug connection, size: S00 Power contactor SIRIUS 3RT2 for switching motors.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Control Voltage | 220 VAC | |
| Version | power contactor | |
| Connection | ring cable lug connection | |
| Degree of protection (IP) | IP00 | |
| Assembly | DIN rail | |
| Latching switching function | 1 Form B (N/C) | |
| Rated Voltage | 400 V | |
| Pin number | 3 pole | |
| Rated current | 16 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
