3RT1476-2XF46-0LA2 | Siemens

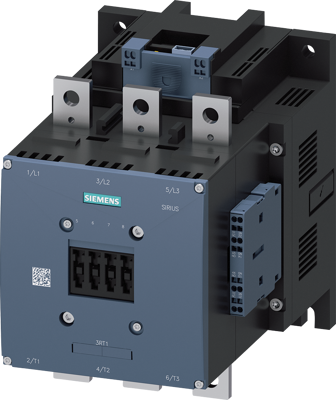

Power contactor, 3 pole, 690 A, 690 V, 2 Form A (N/O) + 2 Form B (N/C), coil 110 VDC, screw connection, 3RT1476-2XF46-0LA2
Order No.: 27H3798
EAN: 4047621023021
MPN:
3RT1476-2XF46-0LA2
3RT14762XF460LA2
Unit Price (€ / pc.)
3,662.7248 € *
Standard delivery time from the manufacturer is: 1 Week
Power contactor AC-1 690 A / 690 V / 40 °C 3-pole, Uc: 72 V DC (0.7-1.25) PLC input 24-110 V DC drive: electronic auxiliary contacts 2 NO + 2 NC main circuit: busbar control and auxiliary circuit: spring-loaded terminal extended rated condition railroad IEC 60077 Power contactor SIRIUS 3RT14 for resistive loads under extreme conditions, e.g. for railway applications.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 690 V | |
| Connection | screw connection | |
| Latching switching function | 2 Form A (N/O) + 2 Form B (N/C) | |
| Control Voltage | 110 VDC | |
| Assembly | screw mounting | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP00/IP20 | |
| Version | power contactor | |
| Rated current | 690 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | lead monoxide, lead titanium zirconium oxide, lead |
| RoHS conform | Yes |
| SVHC free | No |
