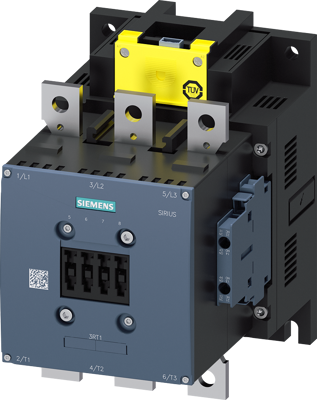

3RT1466-6SF36 | Siemens
Power contactor, 3 pole, 400 A, 690 V, 2 Form A (N/O) + 2 Form B (N/C), coil 96-127 V AC/DC, screw connection, 3RT1466-6SF36
Order No.: 27H3776
EAN: 4047621043395
MPN:
3RT1466-6SF36
3RT14666SF36
Unit Price (€ / pc.)
1,585.1990 € *
Standard delivery time from the manufacturer is: 1 Week
Power contactor AC-1 400 A / 690 V / 40 °C 3-pole, Uc: 96-127 V AC(50-60 Hz) / DC F-PLC input 24 V DC drive: electronic auxiliary contacts 2 NO + 2 NC main circuit: busbar control and auxiliary circuit: screw terminal Contactor SIRIUS 3RT14 for switching high-power resistive loads, especially designed and certified for simple set-up of safety-oriented applications up to SIL CL 3.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 690 V | |
| Connection | screw connection | |
| Latching switching function | 2 Form A (N/O) + 2 Form B (N/C) | |
| Control Voltage | 96-127 V AC/DC | |
| Assembly | screw mounting | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP00/IP20 | |
| Version | power contactor | |
| Rated current | 400 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | lead monoxide, lead titanium zirconium oxide, lead |
| RoHS conform | Yes |
| SVHC free | No |
