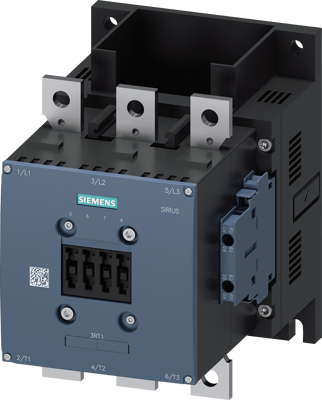

3RT1466-6LA06 | Siemens

Power contactor, 3 pole, 400 A, 690 V, 2 Form A (N/O) + 2 Form B (N/C), screw connection, 3RT1466-6LA06

Order No.: 27H3770
EAN: 4011209509986
MPN:
3RT1466-6LA06
3RT14666LA06
3RT1466-6LA06 Siemens Contactors
Image may differ
Unit Price (€ / pc.)
1,268.3734 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
1,268.37 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1,268.3734 €
Power contactor AC-1 400 A / 690 V / 40 °C 3-pole, drive: without auxiliary contacts 2 NO + 2 NC main circuit: busbar control and auxiliary circuit: screw terminal Contactor SIRIUS 3RT14 for switching resistive loads.
Technical specifications
Filter Property Value
Connection screw connection
Version power contactor
Degree of protection (IP) IP00/IP20
Pin number 3 pole
Assembly screw mounting
Latching switching function 2 Form A (N/O) + 2 Form B (N/C)
Rated current 400 A
Rated Voltage 690 V
Logistics
Property Value
Customs tariff number 85364900
Country of origin DE
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
