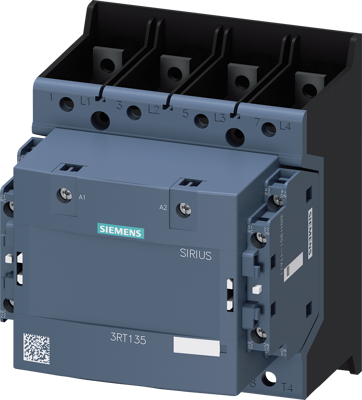

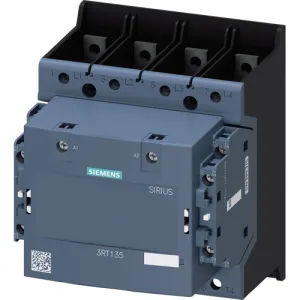

3RT1355-6AR36 | Siemens

Name: Contactor, 4 pole, 200 A, 400 V, 2 Form A (N/O) + 2 Form B (N/C), coil 250-500 V AC/DC, screw connection, 3RT1355-6AR36
Brand: Siemens
SKU: 27H3706
Availability: OutOfStock

Contactor, 4 pole, 200 A, 400 V, 2 Form A (N/O) + 2 Form B (N/C), coil 250-500 V AC/DC, screw connection, 3RT1355-6AR36

Order No.: 27H3706

EAN: 4047621048734

MPN:

3RT1355-6AR36

3RT13556AR36

Image may differ

Key Specification:

Version contactor

Latching switching function 2 Form A (N/O) + 2 Form B (N/C)

Pin number 4 pole

Rated current 200 A

Show 4 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

771.9768 € *

Standard delivery time from the manufacturer is: 6 Weeks

Total Price:

771.98 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Contactor, AC-1, 200 A/400 V/40 °C, S6, 4-pole, 250-500 V AC/DC, 2 NO+2 NC, Connection rail/ screw terminal Simple, efficient and always up to date - SIRIUS modular system.

Technical specifications

	Degree of protection (IP)	IP00/IP20
	Assembly	screw mounting
	Rated current	200 A
	Control Voltage	250-500 V AC/DC
	Pin number	4 pole
	Version	contactor
	Connection	screw connection
	Rated Voltage	400 V
	Latching switching function	2 Form A (N/O) + 2 Form B (N/C)
