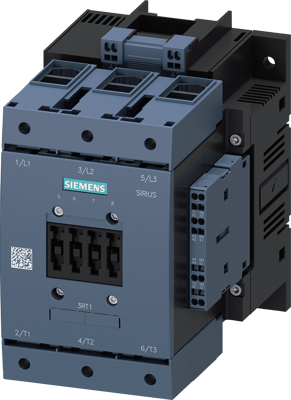

3RT1056-7AB36-0SF1 | Siemens
Power contactor, 3 pole, 185 A, 400 V, 2 Form A (N/O) + 2 Form B (N/C), coil 23-26 V AC/DC, screw connection, 3RT1056-7AB36-0SF1
Order No.: 27H3425
EAN: 4047621014722
MPN:
3RT1056-7AB36-0SF1
3RT10567AB360SF1
Unit Price (€ / pc.)
771.9768 € *
Available: 0 pcs.
Leadtime: On Request **
Power contactor, AC-3e/AC-3 185 A, 90 kW / 400 V AC (50-60 Hz) / DC Uc:23-26 V 3-pole, auxiliary contacts 2 NO + 2 NC drive: conventional main circuit: box terminal control and auxiliary circuit: screw terminal box terminal up to 70 mm² Power contactor SIRIUS 3RT1 for switching motors.
Technical specifications
| Degree of protection (IP) | IP20 | |
| Assembly | screw mounting | |
| Rated current | 185 A | |
| Control Voltage | 23-26 V AC/DC | |
| Pin number | 3 pole | |
| Version | power contactor | |
| Connection | screw connection | |
| Rated Voltage | 400 V | |
| Latching switching function | 2 Form A (N/O) + 2 Form B (N/C) |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
