3RH2921-4DA11 | Siemens
Auxiliary switch, 2 pole, 10 A, 1 Form A (N/O) + 1 Form B (N/C), spring connection, 3RH2921-4DA11
Order No.: 80P7155
EAN: 4011209791169
MPN:
3RH2921-4DA11
3RH29214DA11
Unit Price (€ / pc.)
18.4093 € *
Standard delivery time from the manufacturer is: On Request

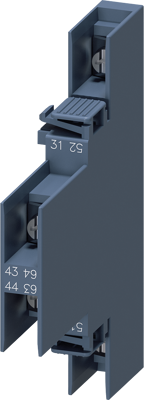

Auxiliary switch, lateral, 1 NO + 1 NC, on the left: 51/52, 63/64, on the right: 31/32, 43/44, current path: 1 NC, 1 NO, ring cable lug connection, for contactors 3RT2 and contactor relays 3RH2 auxiliary switch SIRIUS 3RH29 for the expansion of auxiliary contacts in the control circuit.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | spring connection | |
| Version | auxiliary switch | |
| Degree of protection (IP) | IP00 | |
| Pin number | 2 pole | |
| Assembly | snap-on mounting | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Rated current | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
