3RH2911-4FB11 | Siemens

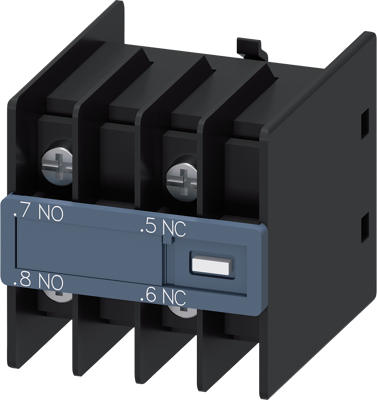

Auxiliary switch, 2 pole, 10 A, 1 Form A (N/O) + 1 Form B (N/C), ring cable lug connection, 3RH2911-4FB11
Order No.: 80P7135
EAN: 4011209829701
MPN:
3RH2911-4FB11
3RH29114FB11
Unit Price (€ / pc.)
23.5977 € *
Standard delivery time from the manufacturer is: On Request
Auxiliary switch, on the front, 1 NO + 1 NC, 11 U, .7/.8, --/--, .5/.6, --/--, current path: 1 NO (leading), --, 1 NC (lagging), --, ring cable lug connection, for contactors 3RT2 and contactor relays 3RH2 auxiliary switch SIRIUS 3RH29 for the expansion of auxiliary contacts in the control circuit.
Technical specifications
| Degree of protection (IP) | IP00 | |
| Assembly | snap-on mounting | |
| Rated current | 10 A | |
| Pin number | 2 pole | |
| Version | auxiliary switch | |
| Connection | ring cable lug connection | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85365080 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
