3RH2911-2NE21 | Siemens

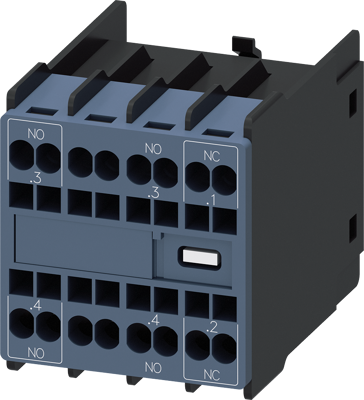

Auxiliary switch, 3 pole, 0.3 A, 2 Form A (N/O) + 1 Form B (N/C), spring connection, 3RH2911-2NE21
Order No.: 81P7313
EAN: 4047621003597
MPN:
3RH2911-2NE21
3RH29112NE21
Unit Price (€ / pc.)
86.3345 € *
Standard delivery time from the manufacturer is: On Request
Auxiliary switch, solid-state compatible, on the front, 2 NO + 1 NC, .3/.4, --/--, .3/.4, .1/.2, current path: 1 NO (solid-state compatible), --, 1 NO, 1 NC (solid-state compatible), spring-loaded terminal, for contactors 3RT2 and contactor relays 3RH2 auxiliary switch SIRIUS 3RH29 for the expansion of auxiliary contacts in the control circuit.
Technical specifications
| Degree of protection (IP) | IP20 | |
| Assembly | snap-on mounting | |
| Rated current | 0.3 A | |
| Pin number | 3 pole | |
| Version | auxiliary switch | |
| Connection | spring connection | |
| Latching switching function | 2 Form A (N/O) + 1 Form B (N/C) |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85365080 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
