3RH2911-2GA13 | Siemens

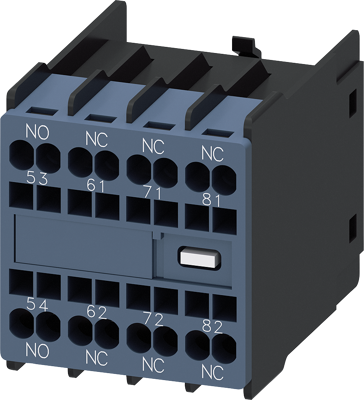

Auxiliary switch, 4 pole, 10 A, 1 Form A (N/O) + 3 Form B (N/C), spring connection, 3RH2911-2GA13
Order No.: 27H3190
EAN: 4011209829497
MPN:
3RH2911-2GA13
3RH29112GA13
Unit Price (€ / pc.)
23.5025 € *
Standard delivery time from the manufacturer is: 1 Week
Auxiliary switch, on the front, 1 NO + 3 NC, 53/54, 61/62, 71/72, 81/82, current path: 1 NO, 1 NC, 1 NC, 1 NC, spring-loaded terminal, physically coded, only with contactor relays 3RH2140 and 3RH2440 combinable (according to EN 50011) auxiliary switch SIRIUS 3RH29 for the expansion of auxiliary contacts in the control circuit.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | spring connection | |
| Degree of protection (IP) | IP20 | |
| Latching switching function | 1 Form A (N/O) + 3 Form B (N/C) | |
| Assembly | snap-on mounting | |
| Version | auxiliary switch | |
| Pin number | 4 pole | |
| Rated current | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
