3RH2911-2DA20 | Siemens

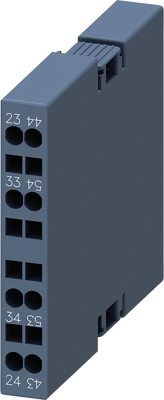

Auxiliary switch, 2 pole, 10 A, 2 Form A (N/O), spring connection, 3RH2911-2DA20
Order No.: 27H3185
EAN: 4011209790353
MPN:
3RH2911-2DA20
3RH29112DA20
Unit Price (€ / pc.)
20.0277 € *
Standard delivery time from the manufacturer is: 1 Week
Auxiliary switch, lateral, 2 NO, on the left: 43/44, 53/54, on the right: 23/24, 33/34, current path: 1 NO, 1 NO, spring-loaded terminal, for contactors 3RT2.1 auxiliary switch SIRIUS 3RH29 for the expansion of auxiliary contacts in the control circuit.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | spring connection | |
| Latching switching function | 2 Form A (N/O) | |
| Assembly | snap-on mounting | |
| Pin number | 2 pole | |
| Degree of protection (IP) | IP20 | |
| Version | auxiliary switch | |
| Rated current | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
