3RH2911-1DA02 | Siemens

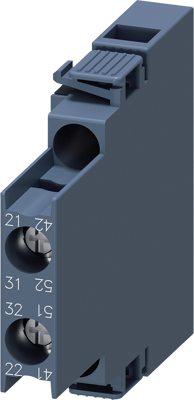

Auxiliary switch, 2 pole, 10 A, 2 Form B (N/C), screw connection, 3RH2911-1DA02
Order No.: 27H3158
EAN: 4011209790254
MPN:
3RH2911-1DA02
3RH29111DA02
Unit Price (€ / pc.)
20.5632 € *
Standard delivery time from the manufacturer is: 1 Week
Auxiliary switch, lateral, 2 NC, on the left: 41/42, 51/52, on the right: 21/22, 31/32, current path: 1 NC, 1 NC, screw terminal, for contactors 3RT2.1 auxiliary switch SIRIUS 3RH29 for the expansion of auxiliary contacts in the control circuit.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | auxiliary switch | |
| Latching switching function | 2 Form B (N/C) | |
| Pin number | 2 pole | |
| Rated current | 10 A | |
| Connection | screw connection | |
| Assembly | DIN rail | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
