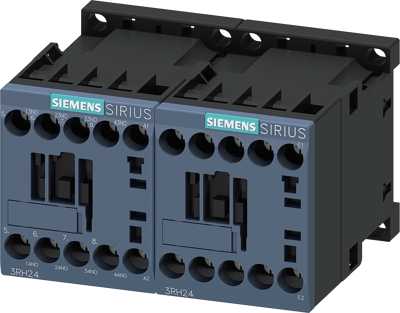

3RH2440-1AP00 | Siemens
Auxiliary contactor, 4 pole, 10 A, 4 Form A (N/O), coil 230 VAC, screw connection, 3RH2440-1AP00
Order No.: 27H3155
EAN: 4011209849457
MPN:
3RH2440-1AP00
3RH24401AP00
Unit Price (€ / pc.)
143.6568 € *
Standard delivery time from the manufacturer is: 1 Week
Contactor relay, latched, 4 NO, 230 V AC, 50 / 60 Hz, Size S00, screw terminal Auxiliary contactor SIRIUS 3RH2 for switching the control signals in the control circuit.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Latching switching function | 4 Form A (N/O) | |
| Control Voltage | 230 VAC | |
| Assembly | DIN rail | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP20 | |
| Version | auxiliary contactor | |
| Rated current | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
