3RH2131-2EP00-1AA0 | Siemens

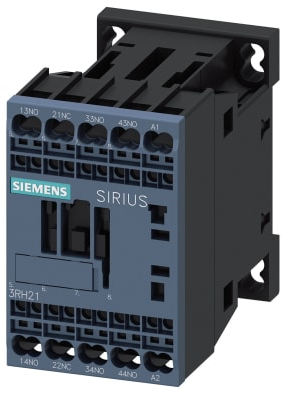

Auxiliary contactor, 4 pole, 10 A, 3 Form A (N/O) + 1 Form B (N/C), coil 230 VAC, spring connection, 3RH2131-2EP00-1AA0
Order No.: 27H3068
EAN: 4047621028507
MPN:
3RH2131-2EP00-1AA0
3RH21312EP001AA0
Unit Price (€ / pc.)
66.9732 € *
Standard delivery time from the manufacturer is: 1 Week
Contactor relay, 3 NO + 1 NC, 230 V AC, 50 / 60 Hz, Size S00, Spring-type terminal with RC element plugged on upright mounting position Auxiliary contactor SIRIUS 3RH2 for switching the control signals in the control circuit.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | spring connection | |
| Latching switching function | 3 Form A (N/O) + 1 Form B (N/C) | |
| Control Voltage | 230 VAC | |
| Assembly | DIN rail | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP20 | |
| Version | auxiliary contactor | |
| Rated current | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
