3RH2122-4AG60 | Siemens

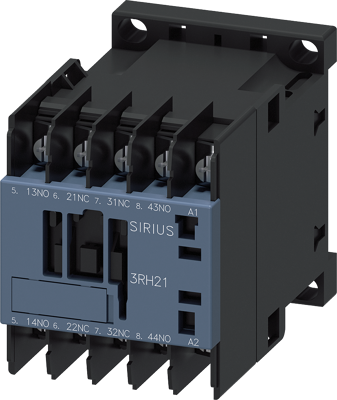

Auxiliary contactor, 4 pole, 10 A, 2 Form A (N/O) + 2 Form B (N/C), coil 100-110 VAC, screw connection, 3RH2122-4AG60
Order No.: 27H3038
EAN: 4011209848573
MPN:
3RH2122-4AG60
3RH21224AG60
Unit Price (€ / pc.)
45.0177 € *
Standard delivery time from the manufacturer is: On Request
Contactor relay, 2 NO + 2 NC, 100 V AC, 50 Hz, 100 .. 110 V, 60 Hz, Size S00, ring cable lug connection Auxiliary contactor SIRIUS 3RH2 for switching the control signals in the control circuit.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Latching switching function | 2 Form A (N/O) + 2 Form B (N/C) | |
| Control Voltage | 100-110 VAC | |
| Assembly | DIN rail | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP00 | |
| Version | auxiliary contactor | |
| Rated current | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
