3RH1981-1JA11 | Siemens

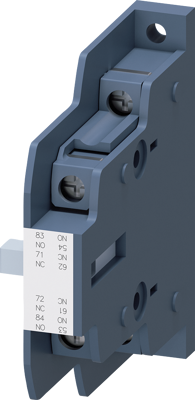

Auxiliary switch, 2 pole, 16 A, 1 Form A (N/O) + 1 Form B (N/C), screw connection, 3RH1981-1JA11
Order No.: 27H2998
EAN: 4047621059518
MPN:
3RH1981-1JA11
3RH19811JA11
Unit Price (€ / pc.)
18.921 € *
Standard delivery time from the manufacturer is: 1 Week
2nd lateral auxiliary switch 1 NO,1 NC, screw terminal for contactor 3RT148 auxiliary switch SIRIUS 3RH19 for the expansion of auxiliary contacts in the control circuit.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Pin number | 2 pole | |
| Degree of protection (IP) | IP00 | |
| Rated current | 16 A | |
| Version | auxiliary switch | |
| Connection | screw connection | |
| Assembly | screw mounting | |
| rated voltage (AC) | 600 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | KR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
